Equipment overview:
This device is a new type of machine specially designed by the company for the wireless charging receiving end, which can be used for winding various wireless charging coils on the market, such as enameled wire and multi-group wires. While meeting the requirements of automated coil production, the efficiency is significantly improved compared to similar products. For example, the single-layer yarn covered wire production capacity can reach 50-200.
Features:
The equipment has high precision, the plane height between the molds can reach 0.01mm, and the product thickness tolerance can reach ±0.01mm. It adopts a vertical winding method, and multiple groups of wires enter at the same time, and multiple groups of wires can be combined. Wire, automatic winding, automatic cutting, automatic cutting, is the leading winding equipment for wireless charging at home and abroad.
The winding machine of this equipment adopts advanced CNC motion controller. The motion controller can perform high-precision linear positioning, arc interpolation positioning, and the program can be customized according to different product requirements.
The company also has a coil winding machine at the transmitter end, which can be designed to wind special windings according to customer needs.
Applicable fields:
Mobile phone wireless charging coil, car wireless charging coil, headset wireless charging coil
Device parameters:
Model: XT-601ST
Capacity: 50-120/h
Specification: 1150(w)×1400(D)×1820(H)mm
Number of winding spindles: 1 axis
Machine weight: about 420kg
Spindle speed: ≤4000rpm
Power supply: AC220V±10% single phase 50/60Hz
Applicable wire diameter: 0.03-0.2 (mm)
Power consumption: about 4.0KvA
Coil height: wire diameter height
Air source: 0.4MPa-0.7Mpa
Coil outer diameter: ≤50mm (special can be customized)
Spindle direction: clockwise/counterclockwise
Lead wire position: the angle can be set arbitrarily
Step memory capacity: 9999
Lead wire length: Determined according to the coil
Control system: touch screen
Tensioner: up to 13 sets of servo tensioners
Number of control axes: 6-axis servo
Crimping method: customized crimping rod crimping T
Coil curing method: curing by heating and drying
Cutting method Custom blade cutting

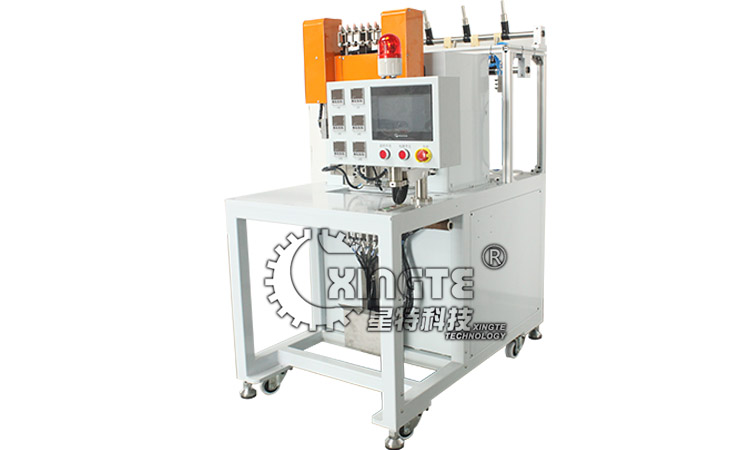

Equipment appearance:
