Equipment Overview:
This machine is a special machine with frame voice coil. It can be used for winding alcohol soluble and hot air enameled wire.Turn off the skeleton part can also be used to wind the hollow voice coil.Adopt spindle flying fork winding mode, six position rotary thread cutting, die stripping.This machine is the most efficient model in the industry, and the output can be about 2000 / h according to 30 cycles per hour.
Equipment features:
The control system adopts all Chinese touch screen interface, which is easy to operate. No basic personnel can work after two days' training. The mechanical operation part is designed reasonably, which makes the production efficiency of the equipment higher than that of the imported equipment.The metal materials used have been treated by special process, which makes the wear resistance and corrosion resistance of the equipment significantly improved compared with the ordinary equipment, and the service life of the equipment has been prolonged.Imported servo motor and high-precision ball screw are used in the mechanical movement part. The imported bearings ensure the high efficiency and precision of the products, and the deformation is small, which improves the product quality. The whole machine adopts the safety design to prevent accidents in the operation process. The equipment can realize 24-hour stable and efficient production, and one person can operate multiple equipment to save labor cost.It can be compatible with automatic production line and unmanned workshop.This machine can save 3 ~ 4 people's labor cost, and the products made by hot air can be produced directly instead of baking.
Field of application:
Paper tube speaker voice coil, rubber tube horn voice coil, speaker speaker voice coil, cavity speaker voice coil
Equipment parameters:
|
name |
parameter
|
name |
parameter |
|
model |
XT-609 |
Number of flying fork shafts |
1axis |
|
Specifications |
7500(w)×1360(D) ×1560(H)mm |
Flying fork speed |
Max. 4800rpm (depending on the outer diameter of the flying fork) |
|
Machine weight |
About 350kg |
Applicable wire diameter |
0.02-0.45（mm） |
|
Power Supply |
AC220 V ± 10% single phase 50 / 60Hz |
Coil height |
Max. 10mm |
|
Consumption of electricity |
About 2.8KVA |
Coil outer diameter |
Max. ø30mm |
|
Air source |
Above 0.4MPa |
Rotation mode |
6 Station |
|
Spindle direction |
Clockwise / counterclockwise |
Tangent mode |
Air pressure cut-off |
|
Step memory capacity |
99999 |
Coil splicing mode |
Alcohol soluble bonding |
|
Control system |
touch screen |
Application method of release agent |
Apply intermittently or continuously |
|
Number of control axes |
4axis |
Tension device |
Servo tension device |
|
temperature |
0-700Degree C |
Hourly capacity |
2000 PCs (15 cycles per layer, 2 layers) |
|
Inner diameter of coil |
Min. Ø5.mm |

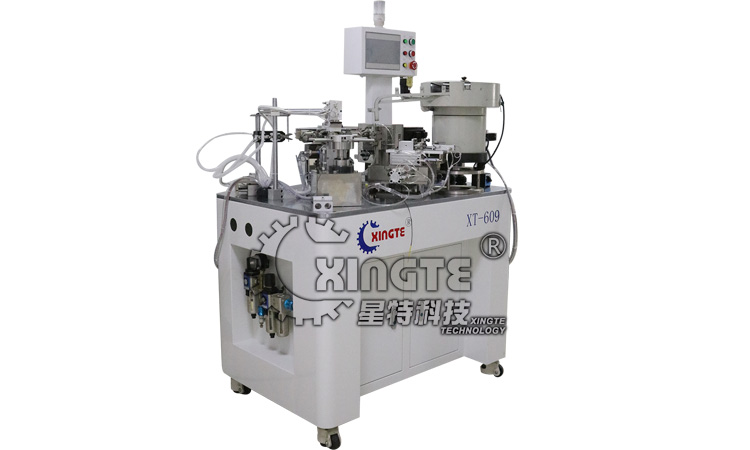

Equipment appearance:
